LP38798SDX-ADJ/NOPB
Manufacturer:
Texas Instruments
Mfr.Part #:
LP38798SDX-ADJ/NOPB
Datasheet:
Description:

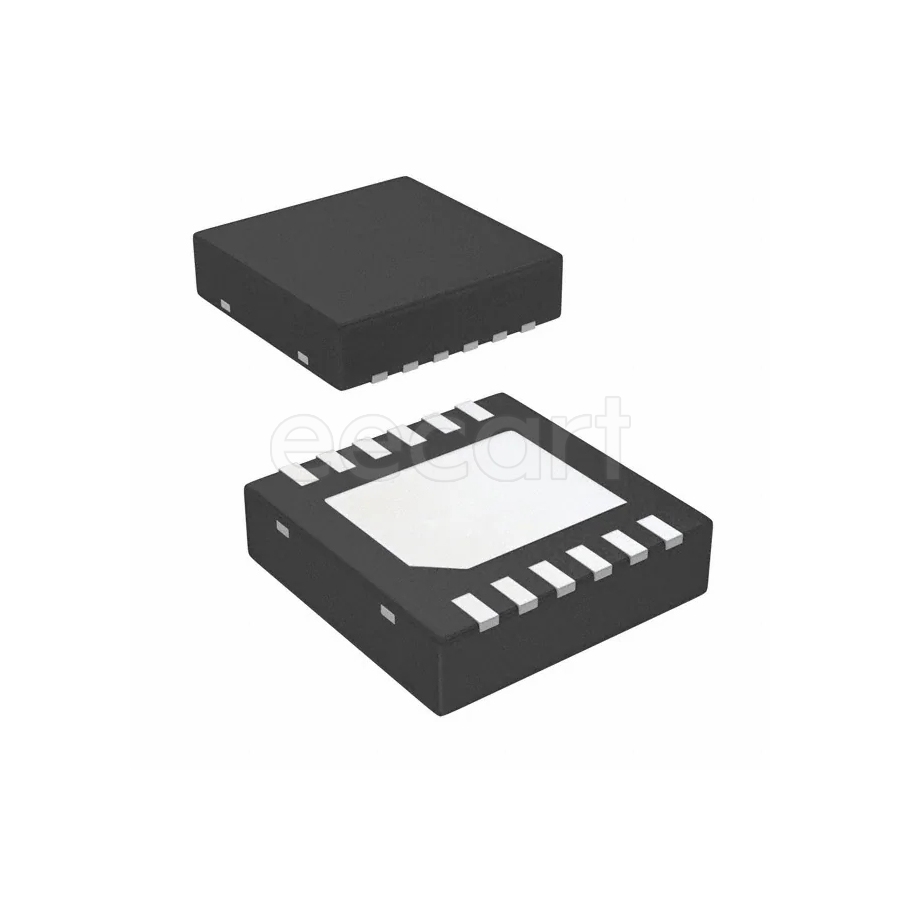

Voltage Regulators - Linear WSON-12 SMD/SMT Positive Adjustable 19.8 V 800 mA
| Parameter | Value |
|---|---|
| Length | 4 mm |
| Width | 4 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 12 |
| Height | 800 µm |
| Thickness | 0.75 mm |
| Radiation Hardening | No |
| Contact Plating | Tin |
| Dropout Voltage | 200 mV |
| Min Input Voltage | 3 V |
| Output Current | 800 mA |
| Output Voltage | 19.8 V |
| Output Type | Adjustable |
| Lifecycle Status | Active |
| Max Supply Voltage | 20 V |
| Min Supply Voltage | 3 V |
| Accuracy | 1 % |
| Max Output Current | 800 mA |
| Quiescent Current | 1.5 mA |
| Max Input Voltage | 20 V |
| Number of Outputs | 1 |
| Max Junction Temperature (Tj) | 125 °C |
| Number of Regulators | 1 |
| Min Output Voltage | 1.5 V |
| Max Output Voltage | 5 V |
| RoHS | Compliant |
| Polarity | Positive |
| Packaging | Reel |
Stock: 39
Distributors
pcbx
pcbxUnit Price$2.29901
Ext.Price$2.29901
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.29901 | $2.29901 |
| 10 | $2.02454 | $20.24540 |
| 25 | $1.89878 | $47.46950 |
| 50 | $1.78084 | $89.04200 |
| 100 | $1.67024 | $167.02400 |
| 300 | $1.62909 | $488.72700 |
| 500 | $1.58896 | $794.48000 |
| 1000 | $1.55530 | $1555.30000 |
